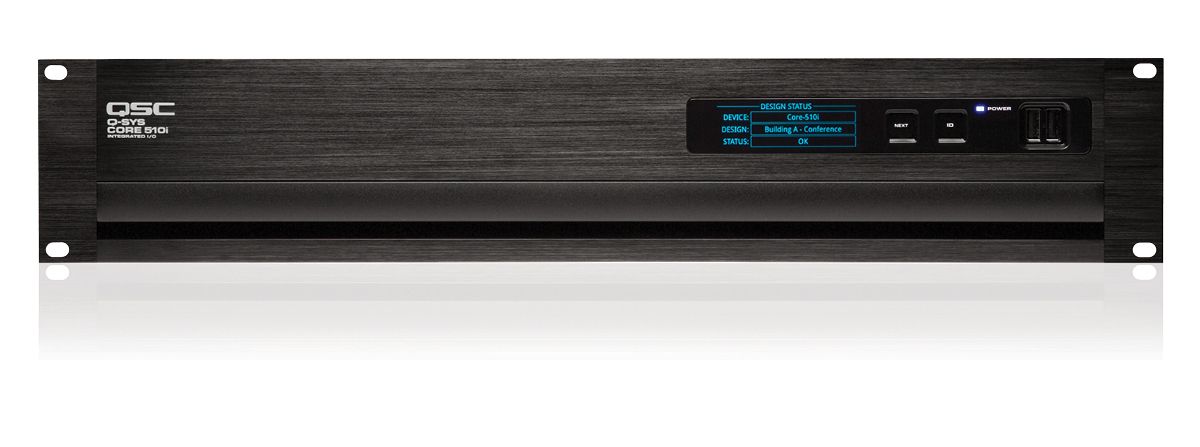

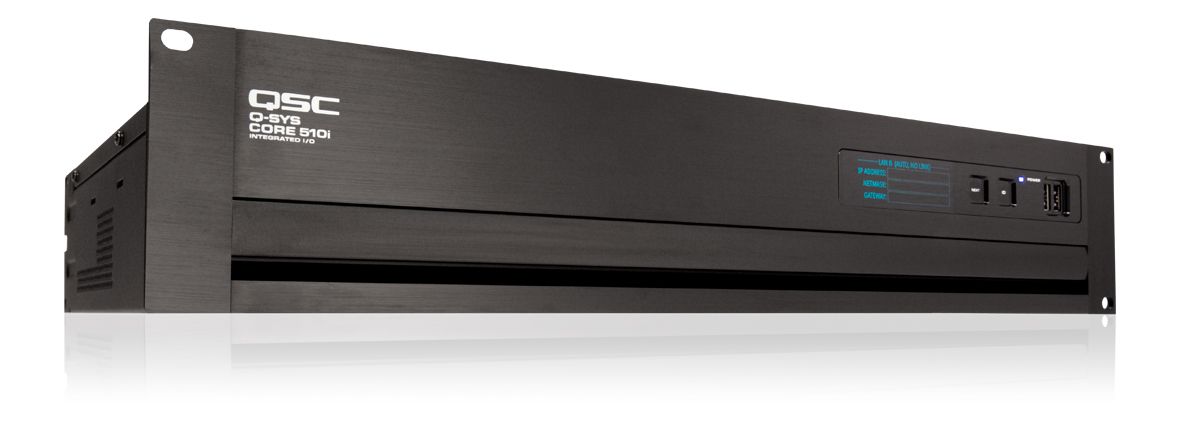

Центральный процессор Q-SYS
- Network Channel Capacity 256 x 256
- Audio I/O Capacity 8 audio I/O card slots - accommodates up to 128x128 total onboard I/O channels
- Front Panel Connectors AUX USB: USB Host x2 (Type A connectors)
- RS232: Male 9-pin D shell connector (DE-9)
- Video out: HDMI
- AUX USB: USB Host x4 (Type A connectors)
- AUX Network: RJ45 10/100/1000 Mbps
- GPIO: Female 15-pin D shell connector x2 (DA-15)
- Media Network LAN A: RJ45 1000 Mbps (QLAN, AES67, VoIP, WAN, Media Streaming, etc)
- Media Network LAN B: RJ45 1000 Mbps (QLAN, AES67, VoIP, WAN, Media Streaming, etc)
- AC Mains Power: IEC connector
- Operating Temperature Range 0°C - 50°C
- Product Dimensions 3.5" x 19" x 15" (89mm x 483mm x 381mm)
- Shipping Carton Dimensions 23.5" x 20" x 6.5" (60mm x 51mm x 17mm)
