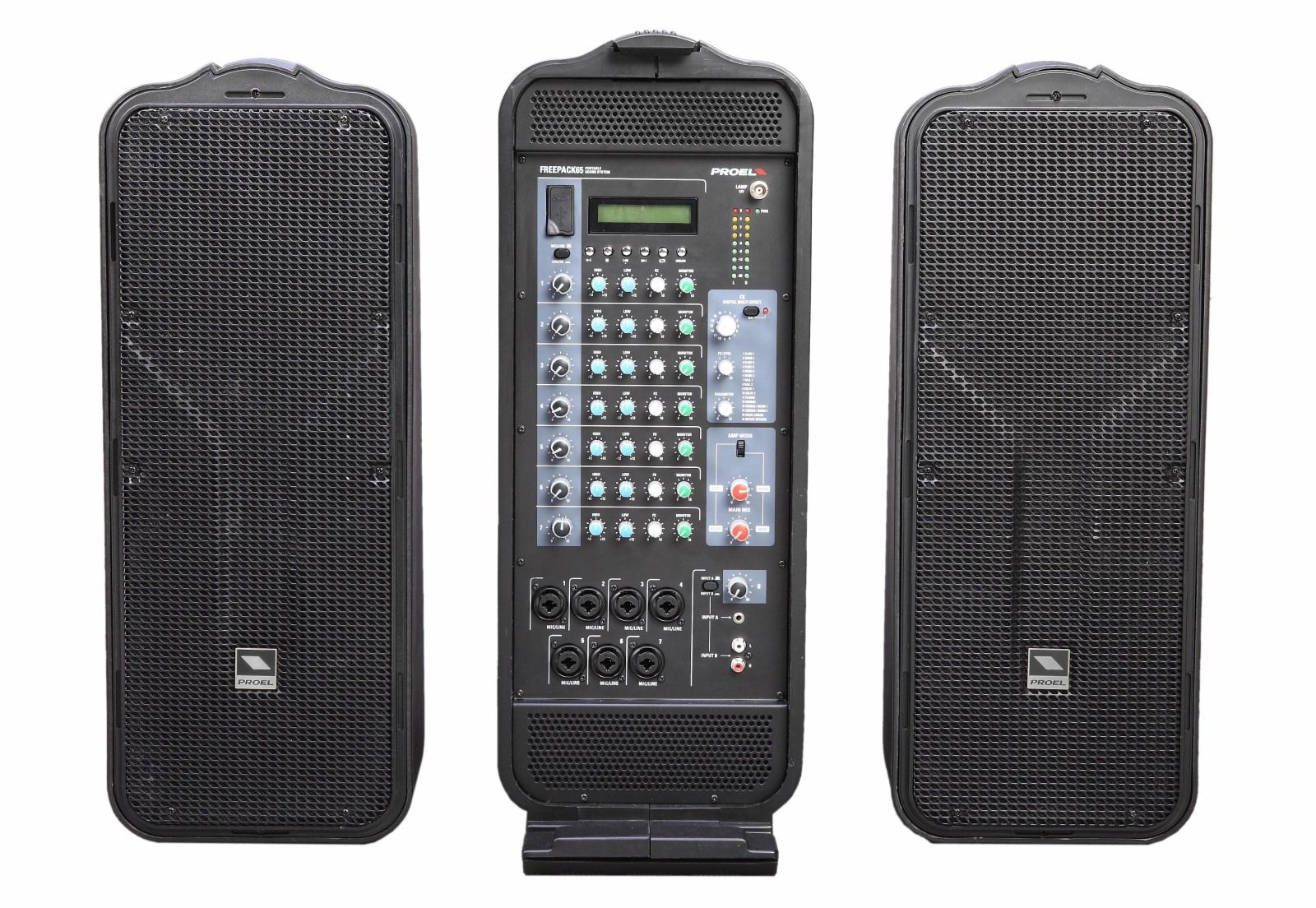

3-полосная портативная активная АС с 8-канальным микшером. Мощность: 2 х 250 Вт (усилители class D). Микшер: 7 входов mic/line моно + 1 line стерео. USB/SD-плеер с LCD-дисплеем . Динамики: 2 x (1"+2x3"+2x6,5"). Диапазон воспроизводимых частот: 75 Гц - 20 кГц . Обработка: 2-полосный EQ, DSP (16 цифровых эффектов). Соединительные провода: в комплекте. Вес: 22.5 кг.
MIXER Section | |
MONO inputs | (7) MIC IN + LINE IN (COMBO) |
STEREO inputs | (1) LINE IN (mini-jack / 2xRCA) |
Input EQ | HIGH: +/-15dB 10 kHz, LOW: +/- 15dB 100 Hz |
Internal Effect | 16 presets DIGITAL multieffect with 1 parameter |
Outputs | PRE-AMP OUT (2xJACK), REC OUT (2xRCA), SPEAKER OUT (4xJACK MAIN + MON) |
Metering | 2x6-LED VU-METER |
MULTIMEDIA Section | |
Player Type | USB / SD memory slot |
Compatible File Formats | MP3 / WAVE |
Control Interface | LCD display |
AMPLIFIER Section | |
Amplifier Type | Class D with SMPS (Switch Mode Power Supply) |
Maxium Output Power | 2 x 250 W @ 4 ohm (1 KHz, 1% THD) |
Frequency Response | 20 Hz - 20 KHz |
LOUDSPEAKER Section | |
Loudspeaker System | 3-way system vented |
High Frequency Device | 1” dome tweeter 1" VC |
Mid Frequency Device | 2x3” midrange with 0.75" VC |
Low Frequency Device | 2x6.5” woofer with 1.35" VC |
Angular Coverage | 100° H x 80° V |
Impedance | 8 ohm |
Frequency Response | 75 Hz - 20 kHz (-10 dB) |
SPL 1W 1m | 90 dB |
Construction | Black polypropylene, metal grille |
Handles | 1 top |
Pole Holder | 1 bottom |
GENERAL Specifications | |
Dimensions | System: 73x21.5x55.5 cm / Speaker: 53.5x21.5x27.5 cm / Mixer: 73x21.5x36 cm |
Weight | System: 22.5 kg / Speaker: 8 kg / Mixer: 6.5 kg |
Power Supply | 230 VAC / 120 VAC (switchable) 50/60 Hz |
Power consumption | 300 W |
