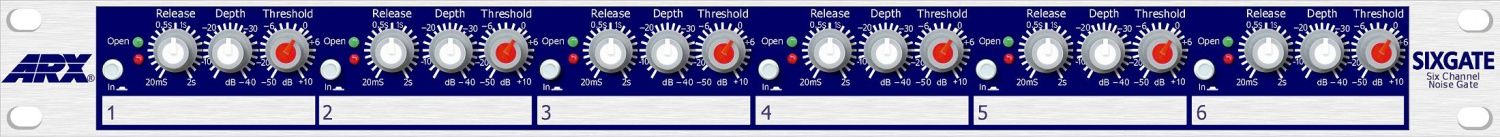

6-ти канальный гейт.
- Input Impedance
- Balanced 20 Kohms, Unbalanced 10 Kohms
- Input Headroom + 22 dB
- CMRR >60 dB, 20 Hz-20 KHz
- Output Impedance
- Balanced 300 ohms, Unbalanced 150 ohms
- Output Level (Max) + 20 dB
- Frequency Response 20Hz to 20KHz ±0.2dB
- Signal to Noise Ratio
- Gate Closed: -95 dB Unweighted, -105 dB 'A' weighted
- Gate Open, Depth Minimum: -93.5 dB Unweighted -98dB 'A' weighted
- Distortion 0 .01% THD @ 0dB,1KHz
- Dynamic Range 125 dB
- Attack Time Program dependent using high-speed opto-couplers
- Release Time User variable

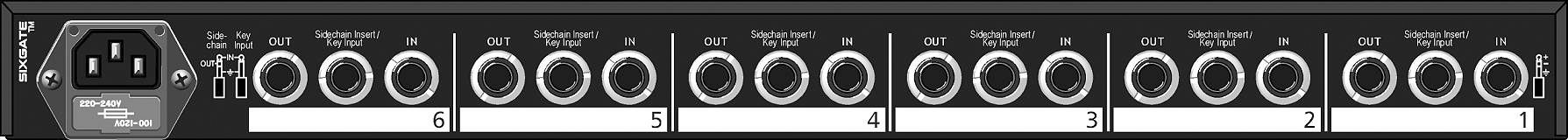

- Input and Output Connector type Balanced Jack
- Sidechain Insert Connector TipRingSleeve Jack
- Sidechain Insert Impedance 10 Kohm
- Power Requirements 100/120 V AC, 220/240 V AC
- Weight 5 lbs/2.2 Kg
- Dimensions
- 19"Wide x 13/4"High x 6"Deep; 482 x 44 x 155mm
