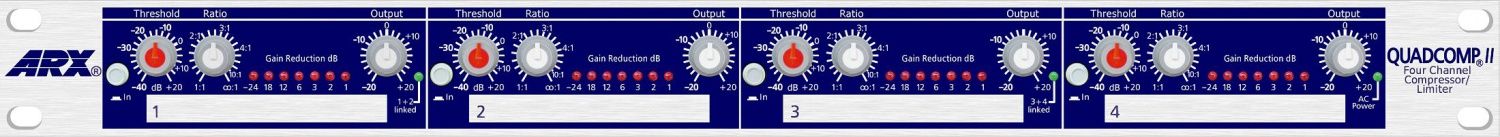

4-х канальный компрессор / лимитер.
- Input Impedance
- Balanced 20 Kohms, Unbalanced 10 Kohms
- Input Headroom + 20dB
- CMRR >50dB, 20 Hz—20 KHz
- Output Impedance
- Balanced 300 ohms Unbalanced 150 ohms
- Output Level (Max) + 20 dB
- Frequency Response 20Hz-20KHz ±0.5dB
- Signal to Noise ratio
- -93 dB Unweighted, -98 dB ‘A’ weighted
- Distortion .015% THD @ 0dB,1KHz
- Dynamic Range 108 dB
- Attack and Release Times Program dependent
- Metering
- 7 LED display: –1, 2, 3, 6, 12, 18, –24 dB
- Sidechain Insert Impedance 10 Kohm
- Power Requirements
- 100/120 V AC or 220/240 V AC
- Weight 5 lbs/2.2 Kg
- Dimensions
- 19"W x 1¾"H x 6"D, 482 x 44 x 155mm
- Input Connector type Balanced XLR
- Output Connector type Balanced XLR
- Sidechain Insert Connector TRS Jack
