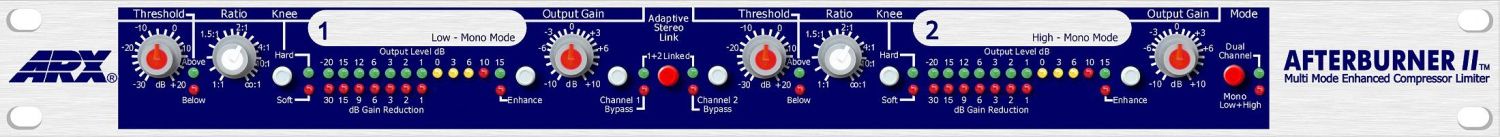

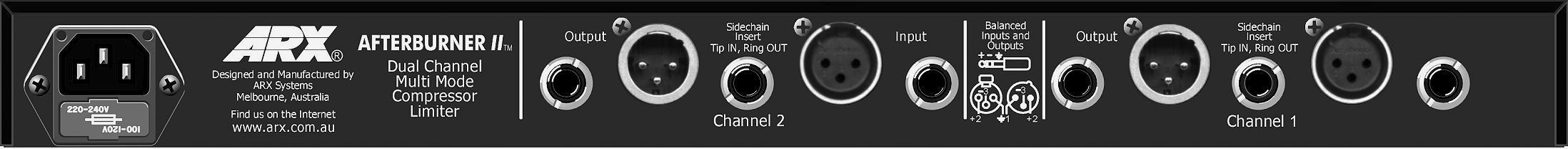

2-х канальный мастер-компрессор / лимитер.
- Input Impedance Balanced 20 Kohms, Unbalanced 10 Kohms
- Input Headroom + 22 dB
- CMRR >60 dB, 20 Hz-20 KHz
- Output Impedance Balanced 300 ohms, Unbalanced 150 ohms
- Output Level (Max) + 22 dB
- Frequency Response 20Hz to 20KHz ±0.2dB
- Signal to Noise ratio -93 dB Unweighted, -99 dB 'A' weighted
- Distortion .02% THD @ 0dB,1KHz
- Dynamic Range 115 dB
- Sidechain Insert Impedance 10 Kohm
- Filter Section
- Filter Type Phase corrected 6dB/octave
- Summed Filter Response ±0.2dB through crossover region
- Dividing Frequency 250 Hz
- Enhance Section
- Low Enhance 50 Hz, High Enhance 10 KHz
- Power Requirements 100/120 V AC, 220/240 V AC
- Weight 5 lbs/2.2 Kg
- Dimensions 19"W x 1¾"H x 6"D, 482 x 44 x 155mm
- Input/OutputConnector type XLR, Balanced Jack
- Sidechain Insert Connector TRS Jack
