2-х канальный 1/3 октавный графический эквалайзер
- Input Impedance Balanced 20 Kohms, Unbalanced 10 Kohms
- Input Headroom + 23 dB
- CMRR >55 dB, 20 Hz to 20 KHz
- Output Impedance Balanced 300 ohms, Unbalanced 150 ohms
- Output Level (Max) + 23 dB
- Frequency Response 10Hz to 20KHz ±0.25dB
- Signal to Noise ratio -93 dB Unweighted, -98 dB 'A' weighted
- Distortion .0035% THD, 0dB, @1KHz
- Dynamic Range 116 dB
- High Pass Filter Sweepable 20-200Hz
- Power Requirements 100/120 V AC, 220/240 V AC, 18VA
- Weight 8lbs/3.75Kg
- Dimensions19"W x 3½"H x 8"D, 482 x 89 x 205 mm (2 RU)

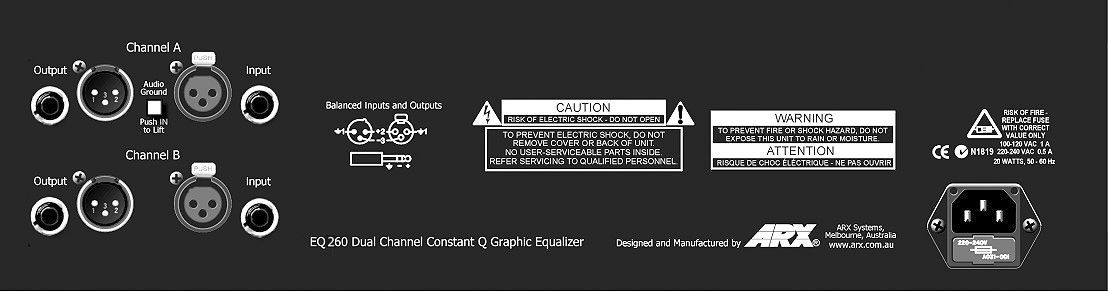

- Input Connector type XLR, Balanced Jack
- Output Connector type XLR, Balanced Jack
