Активная акустическая система 8" + 1.4", 2000Вт, 128дБ, покрытие 105 градусов, 12.2кг
- Configuration Multi-purpose, 2-way powered loudspeaker
- LF Transducer 8" (203 mm), cone
- HF Transducer 1.4" (35.6 mm) titanium diaphragm compression driver
- Frequency Response (-6 dB) 59 Hz - 20 kHz
- Frequency Range (-10 dB) 55 Hz - 20 kHz
- Nominal Coverage Angle 105° Axisymetric
- Maximum Rated SPL1
-
- Amplifier
-
- Cooling 128 dB @1 M, peak 122 dB @ 1 M, continuous
-
- Class D Peak: 1800 W (LF), 225 W (HF)
-
- Low-noise, variable speed fan

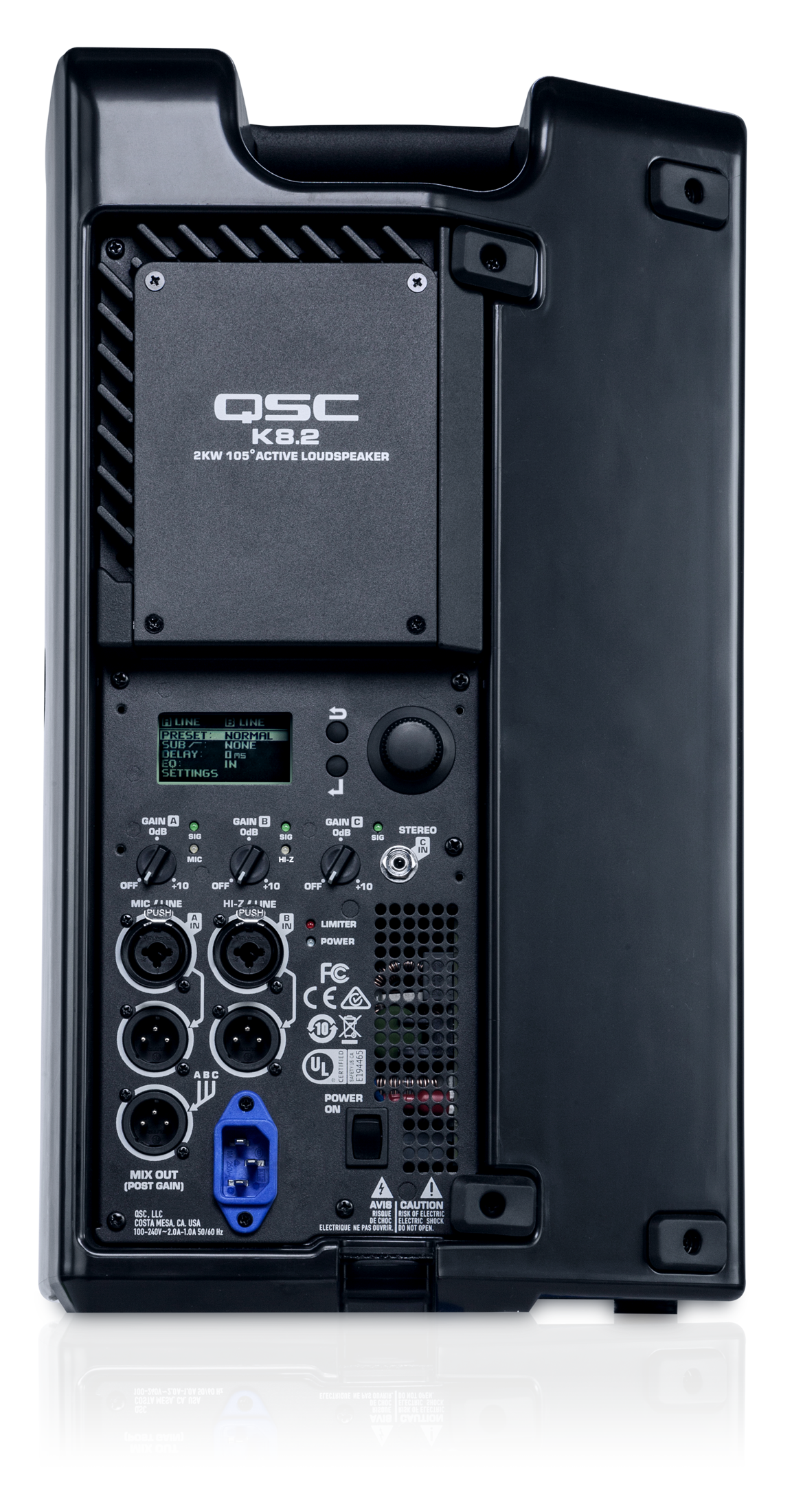

- Controls Power
- 3 x Level
- Rotary encoder (push)
- 2 x selection buttons
- Indicators Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm)
- 2 x Power LED (front and rear)
- 3 x Input Signal LED
- Input A Mic selected LED
- Input B Hi-Z selected LED
- Limiter active LED
- Connectors 2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input
- 1 x 3.5 mm TRS (Stereo Input)
- 2 x XLR/M (Loop-thru Output)
- 1 x XLR/M (Mix Output)
- 1 x locking IEC power connector
- AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
- AC Power Consumption 1/8th Power2 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
- AC Power Consumption - Standby .2A at any voltage
- Enclosure Details
- Enclosure Enclosure Impact Resistant ABS
- Attachment Points 2 x M10 threaded inserts plus Pull-Back
- Color Black (RAL 9011)
- Grille 18 Gauge powered coated steel, internal cloth lining
- Dimensions (HxWxD) 17.7 x 11 x 10.6 in
-
- 449 x 280 x 269 mm
- Net Weight 12.2 kg (27 lbs)
- Shipping Weight 14.4 kg (31.8 lbs)
- Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
- Optional Accessories K8 Tote, K8 Outdoor Cover
- M10 Kit-C, K.2-LOC Lock Out Cover
- K8.2 Yoke
